Focusing on lithium battery protection solutions

BF-GP12S016-01
BF-GP12S016-02
BF-GP12S016-03
BF-GP12S016-04

BF-GP12S016

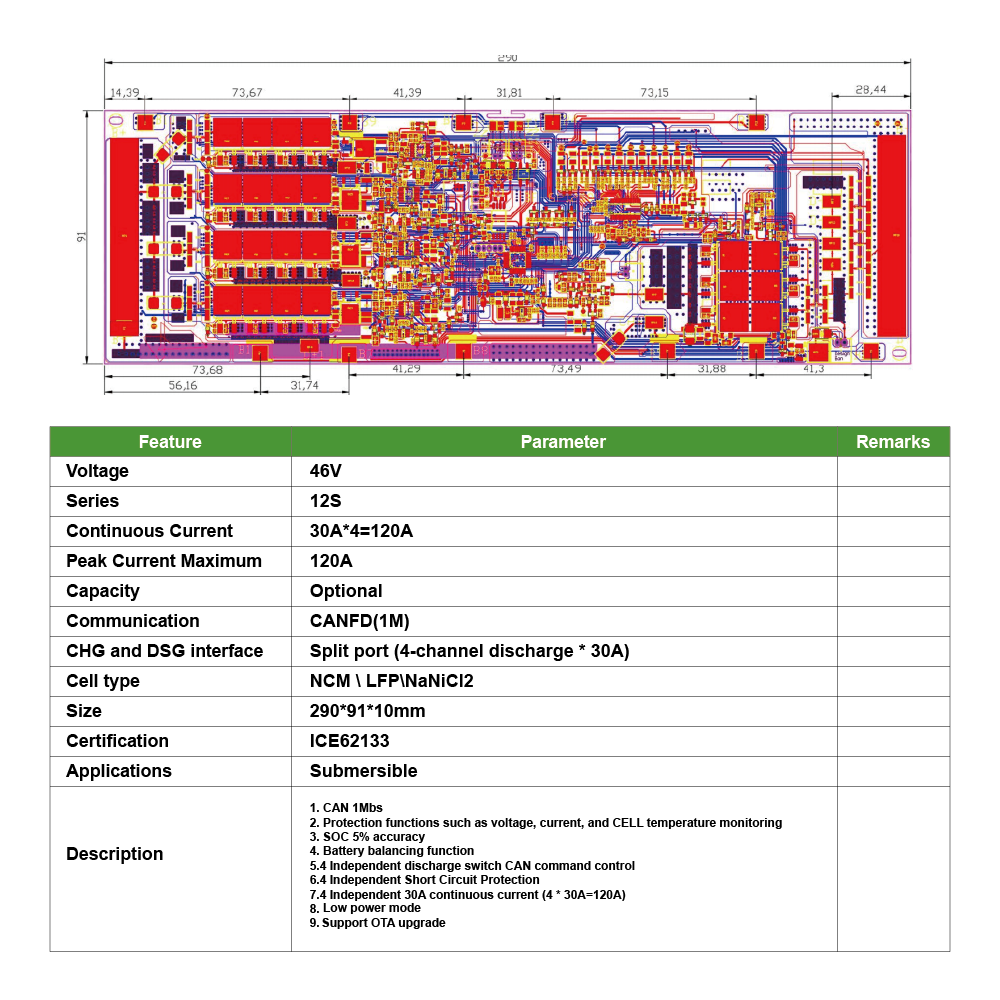

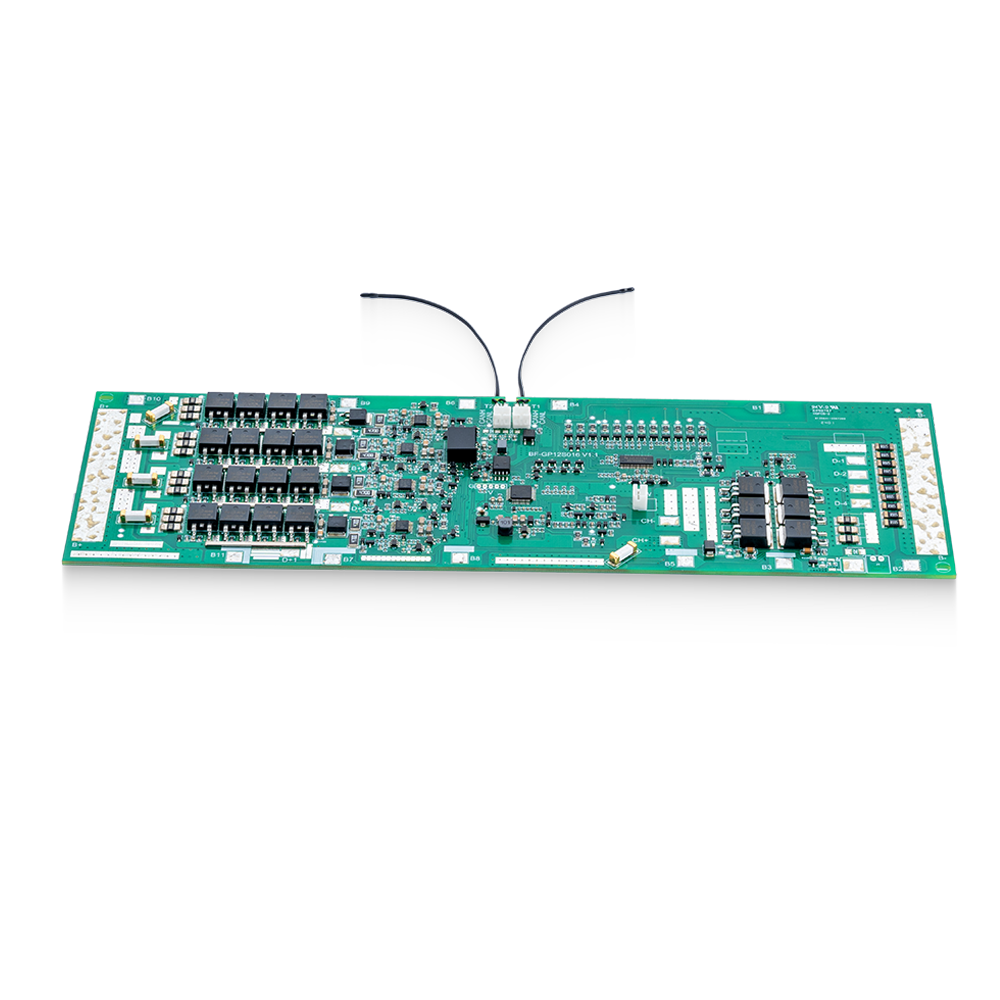

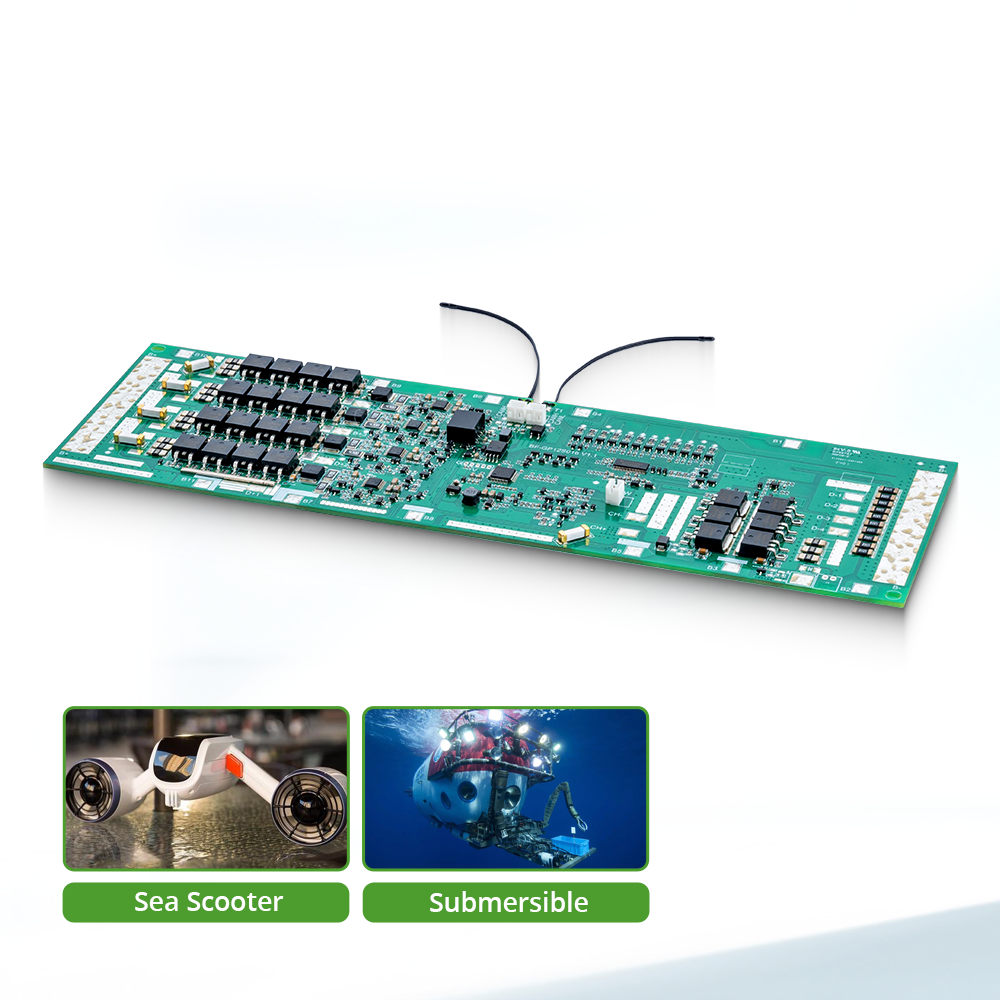

Product Description: BF-GP12S016 is a battery protection model solution for a battery pack of 12 cells in series, which is designed for the application in power tools、park tools、E-bike、instrument、equipment, and so on. It can be used for cells of different chemistry, for example: Li-ion、Li-Polymer、LiMnO2、LiCoxNiyMnzO2、and so on. The protection function include over charge、over discharge、over current、short circuit protection, and so on.

1:  CAN 1Mbs
2: Protection functions such as voltage, current, and CELL temperature monitoring
3:  SOc 5% accuracy
4: Battery balancing function
5: 4 Independent discharge switch CAN command control
6: 4 Independent Short Circuit Protection
7: 4 independent 30A continuous current (4 * 30A=20A)
8: Weakness switch,
9: Low power mode
10: Support OTA upgrade

Send Inquiry
Product Introduction

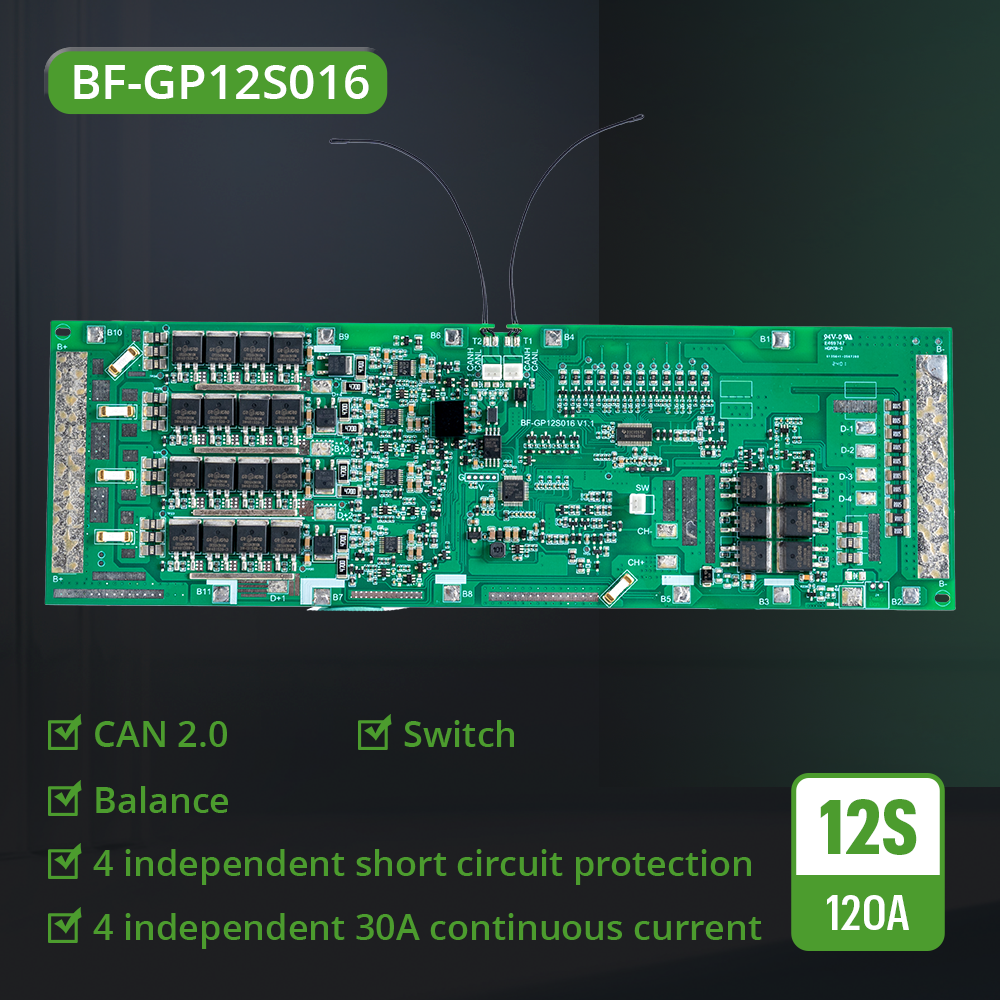

BF-GP12S016

CAN 2.0/Switch/Balanced/4 independent short circuit protection /4 independent 30A continuous current

BF-GP12S016-04

*
*
