Focusing on lithium battery protection solutions

BF-GP10S016-01
BF-GP10S016-02
BF-GP10S016-03
BF-GP10S016-04

BF-GP10S016

Product Description: BF-GP10s016 is a battery protection model solution for a battery pack of 10 cells in series from BMF Company Limited, which is designed for the application in power tools、park tools、E-bike、instrument、equipment, and so on. It can be used for cells of different chemistry,for example: Li-ion、Li-Polymer、LiMnO2、LiCoxNiyMnzO2、and so on.The protection function include over charge、over discharge、over current、short circuit protection,and so on.

1: Ultra low power consumption
2: High precision SOC 5%
3: Protection measures such as voltage and current monitoring
4: Protection measures such as battery temperature and MOS temperature monitoring
5:  LED display light board
6: Button or charging wake-up
7: Secondary overvoltage protection
8: Battery balance 40mA
9: Support OTA upgrade

Send Inquiry
Product Introduction

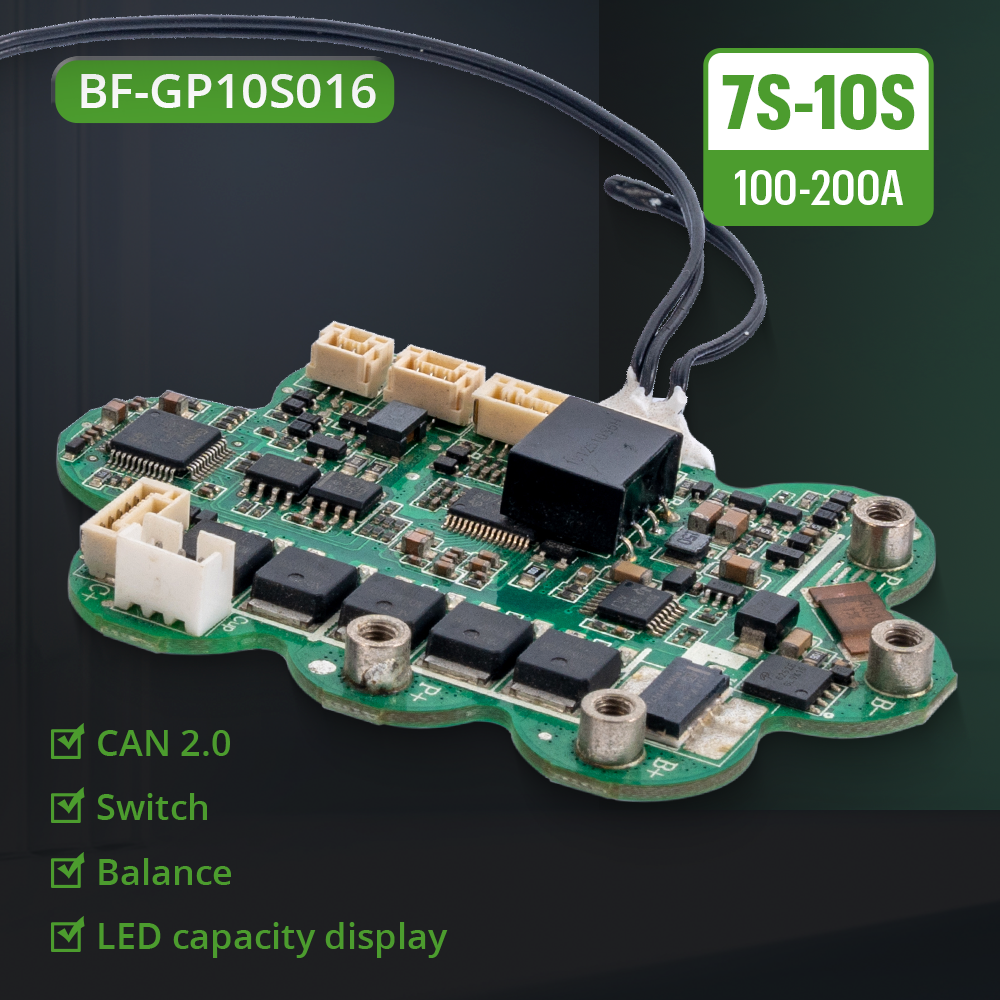

BF-GP10S016

CAN 2.0/Switch/Balanced/LED capacity display

BF-GP10S016-04

*
*
